9000 Btu To 24000 Btu Air Conditioner Bracket
When selecting and installing an air conditioner, an important but often overlooked component is the air conditioner mounting bracket. Whether it is a 9000 Btu or 24000 Btu air conditioner model, a sturdy air conditioner mounting bracket is essential to ensure the safe and stable operation of the air conditioner.
The Importance of Air Conditioner Mounting Support Bracket
The air conditioner mounting support bracket, or air conditioner bracket, is a support structure installed on the exterior wall of a building to carry the weight of the air conditioner outdoor unit. Since the outdoor unit of the air conditioner is usually heavy (especially the higher-powered 24000 Btu model), a well-designed and well-made bracket can prevent the outdoor unit from accidentally shifting or falling during operation. This not only protects the outdoor unit from damage, but also ensures the safety of pedestrians and residents.
Choosing a wall bracket for ac unit
When choosing a wall bracket for ac unit, there are several key factors to consider. The first is the load-bearing capacity of the bracket. For a 9000 Btu air conditioner, the weight of the outdoor unit is relatively light, but for a 24000 Btu air conditioner outdoor unit, the weight may increase significantly. Therefore, it is crucial to choose a bracket with sufficient load-bearing capacity. Generally, the load-bearing capacity of the bracket should be slightly higher than the actual weight of the air conditioner outdoor unit to provide additional safety.
The second is the material and durability of the bracket. High-quality air conditioner brackets are usually made of galvanized steel, stainless steel or aluminum alloy, which have excellent rust and corrosion resistance and are suitable for long-term outdoor use. Especially in humid or coastal areas, a bracket with strong corrosion resistance can significantly extend its service life and avoid bracket failure due to rust.
Installation and maintenance recommendations
When installing the air conditioner bracket, ensure that the bracket is firmly connected to the wall. Usually, the bracket is fixed with expansion bolts to ensure that it can stably carry the air conditioner outdoor unit. In addition, pay attention to the horizontality of the bracket during installation to avoid unstable operation of the air conditioner outdoor unit due to tilted installation.
In terms of maintenance, it is particularly important to check the status of the bracket regularly. Especially after extreme weather, check whether the bolts of the bracket are loose and whether there are signs of corrosion on the surface of the bracket. If any problems are found, they should be repaired or replaced in time to ensure the safe operation of the air conditioner outdoor unit.
Whether it is a 9000 Btu or 24000 Btu air conditioner, choosing the right air conditioner bracket is an important guarantee to ensure the safe operation of the air conditioner. By choosing a wall bracket with strong load-bearing capacity and excellent corrosion resistance, and performing regular maintenance inspections, you can effectively extend the service life of the air conditioner bracket and ensure the long-term stable operation of the air conditioner.

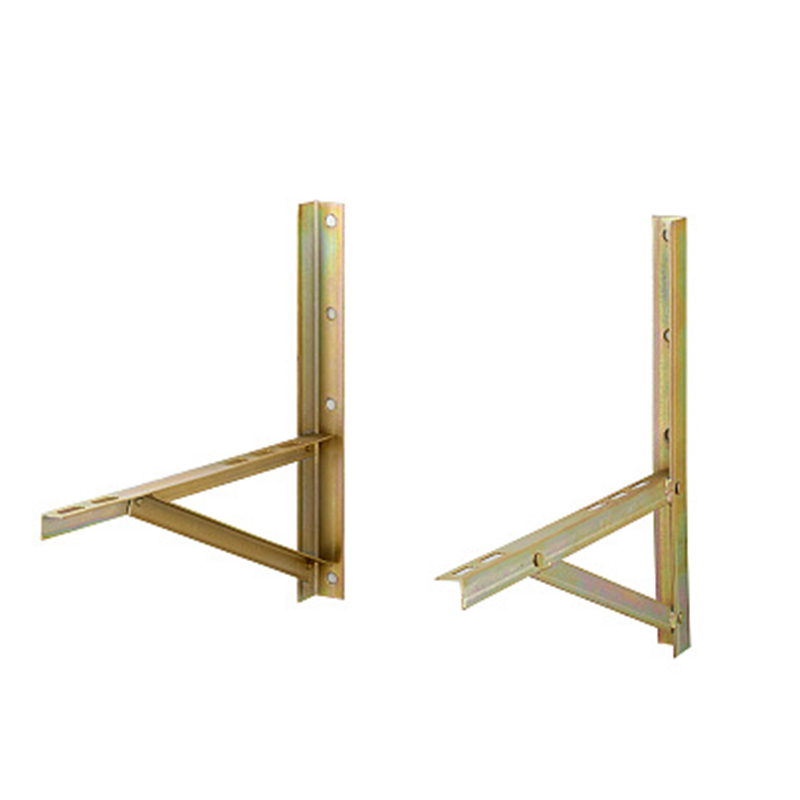

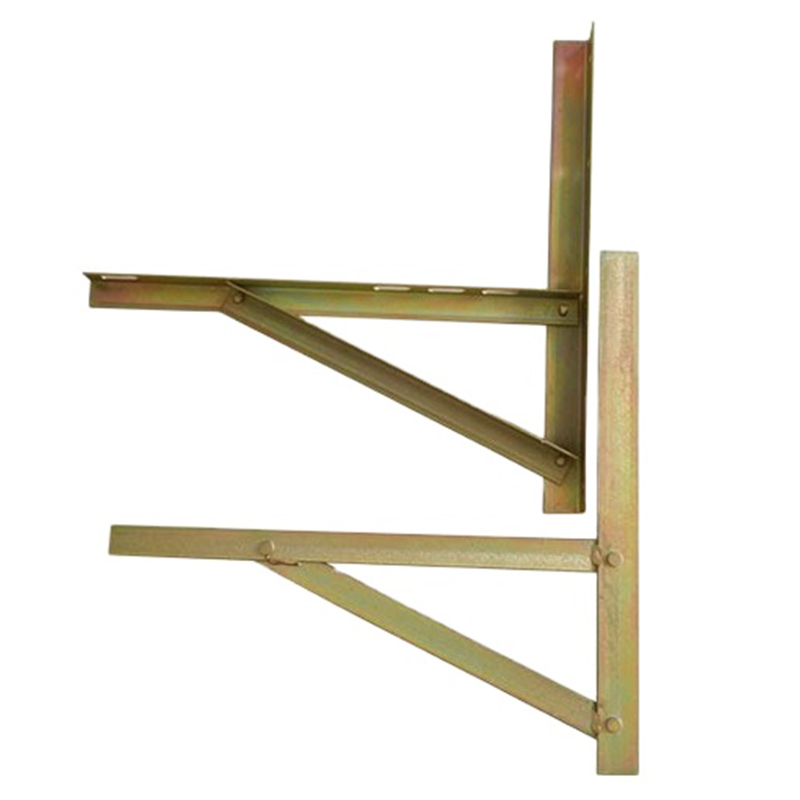

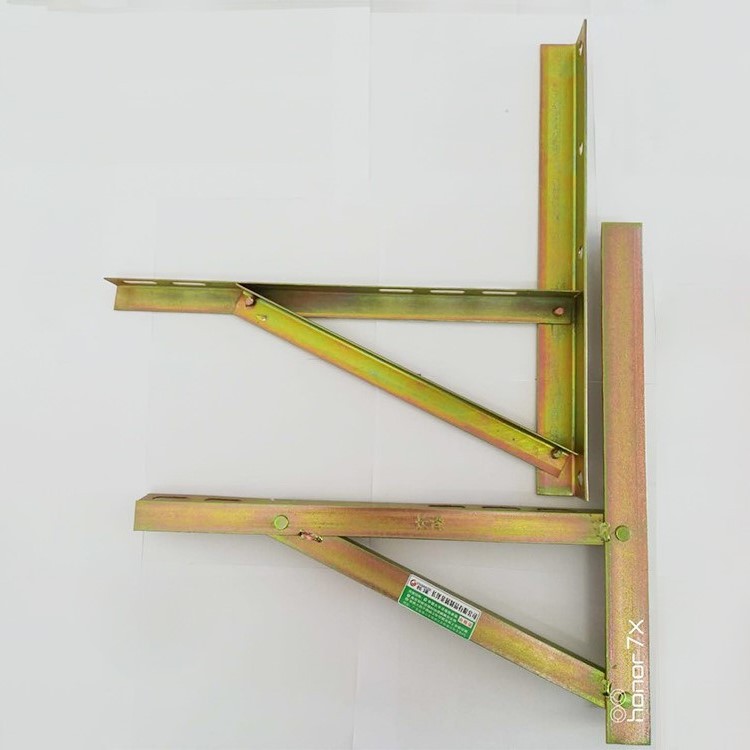

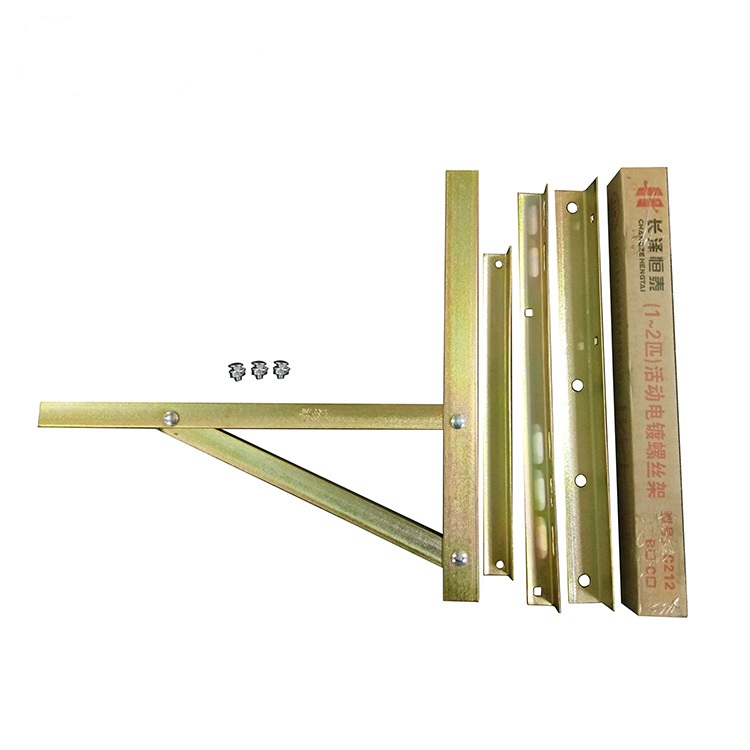

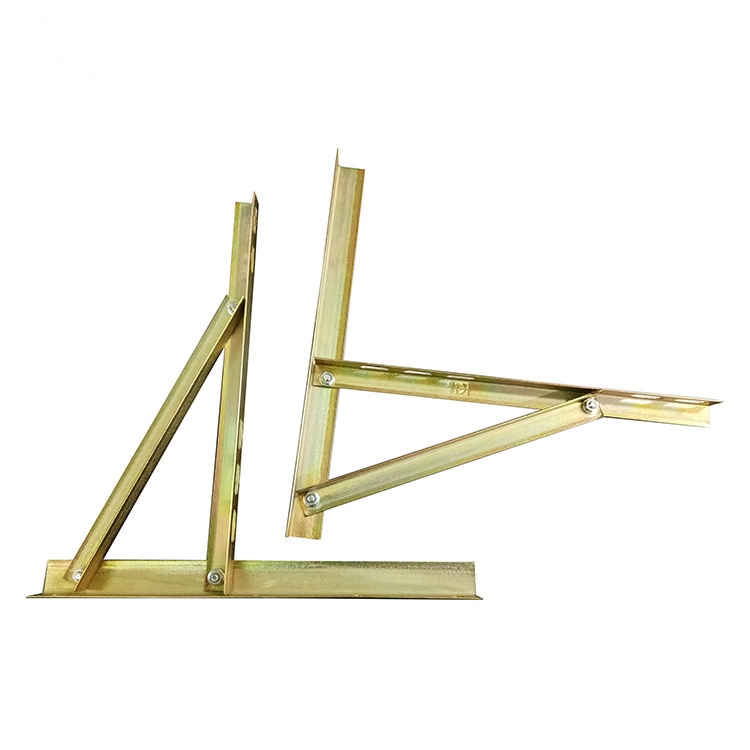

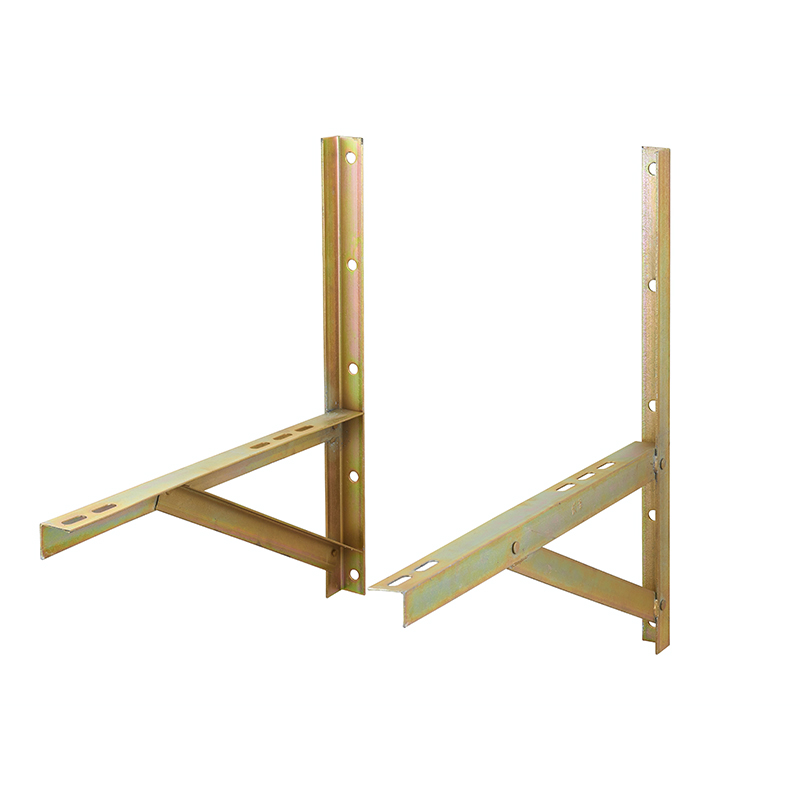

Galvanized air conditioner bracket:
Material: Galvanized / Cold rolled steel
Size:460*460 ,also can customize
Thickness: 1.8mm,2mm,2.5mm.3mm
Color:Yellow ,white or customize
Loading weight:180kg
Surface treatment: Galvanized
Model no. | Size(mm) | Thickness(mm) | N.W(KG) | Loading weight(KG) |
C201C | 460*490 | 1.8 | 2.0 | 150 |
C201B | 460*490 | 2.0 | 2.2 | 180 |
C201A | 460*490 | 2.0 | 2.7 | 180 |
